Product Description
To get additional info about the product, please refer to the datasheet:
PNEUMATIC TOGGLE CLAMPS WITH FLOW RESTRICTION FOR ASSEMBLY & WELDING – 810 SERIES

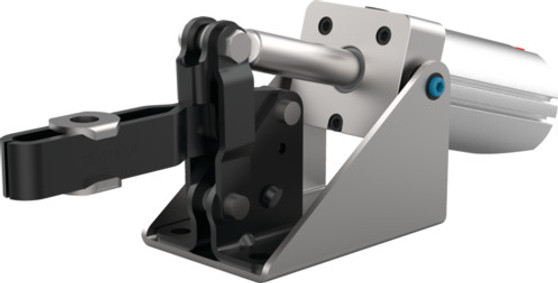

DESTACO’s 810 Series pneumatic toggle clamps feature sensor ready for round or T-slot style sensors, built-in flow restriction that eliminates the need for external flow controls, and function as the pneumatic version of the Series 210 manual clamps. Common applications for these clamps include assembly and welding. Models are now available with optional handles.
Markets: Automotive, Food and Packaging, Industrial
Applications: Fixturing and Testing, Welding, Assembly
| Air Consumption (ft³) : | 0.029 |
| Air Port size : | 1/8 NPT |
| Application - Assembly : | Excellent/High |
| Application - Welding : | Fair/Medium |
| Clamp Arm Style : | u-bar |
| Clamp Arm Length (in) : | 3.57 |
| Cylinder Bore (in) : | 1.57 |
| Duty Cycle : | Fair/Medium |
| Exerting Force (lbf) : | 856 |
| Flanged Washers : | 235106 |
| Height Under Clamp Arm (in) : | 1.79 |
| Maximum Holding Capacity (lbf) : | 600 |
| Operating Temperature : | -10° to 90°C (-14° to 194° F) |
| Download the Service Manual : | /content/dam/destaco-assets/documents/pdf/service_manuals/Pneumatic_Hold_Down_Clamp_-_802_807_810_Service_Information-3867.pdf |
| Product Function : | Clamping |
| Product Series : | 810 |
| Product Type : | Pneumatic Toggle Clamp |
| Replacement Seal Kit : | 810450-40-1-00 |
| Weight (lb) : | 4.07 |
