PNEUMATIC TOGGLE CLAMPS WITH SENSOR READY CAPABILITY – 802 SERIES

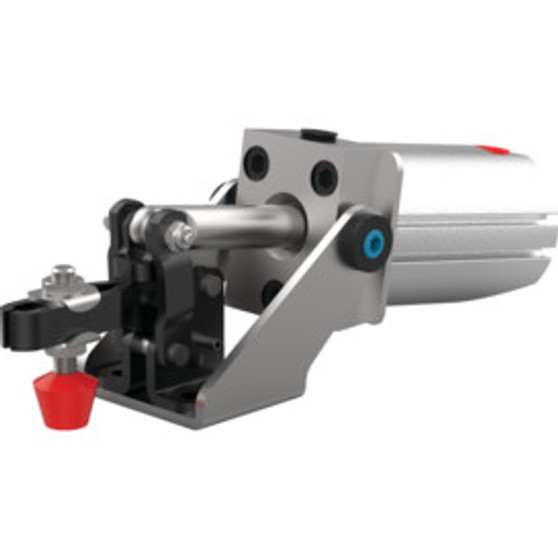

DESTACO’s 802 Series pneumatic toggle clamps feature sensor ready for round or T-slot style sensors and are the pneumatic versions of Model 202-U. Common applications for these pneumatic clamps include assembly and welding. Models are now available with optional handles.
Markets: Automotive, Food and Packaging, Industrial
Applications: Fixturing and Testing, Welding, Assembly
Standard power clamp :
For light duty welding and assembly applications
Sensor ready for T-slot or round sensors
Pneumatic version of 202-U manual toggle clamp
Model 802-U has 1/8NPT ports
Model 802-UE has G-1/8 ports
Replacement Clamp Assembly: 802-U-LC
| Air Consumption (ft³) : | 0.0006 |
| Air Port size : | 1/8 NPT |
| Application - Assembly : | Excellent/High |
| Application - Welding : | Fair/Medium |
| Clamp Arm Style : | u-bar |
| Clamp Arm Length (in) : | 1.73 |
| Cylinder Bore (in) : | 1.26 |
| Duty Cycle : | Poor/Low |
| Exerting Force (lbf) : | 200 |
| Flanged Washers : | 215105 |
| Height Under Clamp Arm (in) : | 1.06 |
| Maximum Holding Capacity (lbf) : | 200 |
| Operating Temperature : | -10° to 90°C (-14° to 194° F) |
| Download the Service Manual : | https://media.destaco.com/assetbank-destaco/assetfile/3867.pdf |
| Product Function : | Clamping |
| Product Series : | 802 |
| Product Type : | Pneumatic Toggle Clamp |
| Replacement Seal Kit : | 802550-20-1-00 |
| Spindle Assembly : | 202208-M |
| Spindle Included? : | Yes |
| Weight (lb) : | 1.52 |
