Product Description

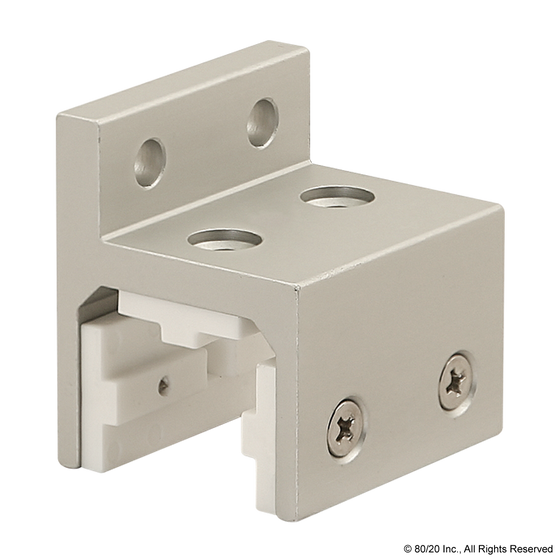

The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
| Series : | 10 Series |
| Material : | Aluminum |
| Grade : | 6105-T5 |
| Process : | Extruded |
| Finish : | Anodize |
| Color : | Clear |
| A : | 1.968" |
| B : | .656" |
| C : | .250" |
| D : | .094" |
| E : | 1.624" |
| F : | 1.312" |
| G : | .306" |
| H : | .156" |
| J : | 1.312" |
| K : | .311" |
| L : | 1.875" |
| M : | n/a |
| N : | .438" |
| P : | .812" |
| Q : | 1.000" |
| R : | #8 FHS |
| S : | n/a |
| T : | .257" |
| U : | 1.000" |
| V : | .438" |
| W : | .343" |
| X : | .406" |
| Weight : | 0.198000 |
