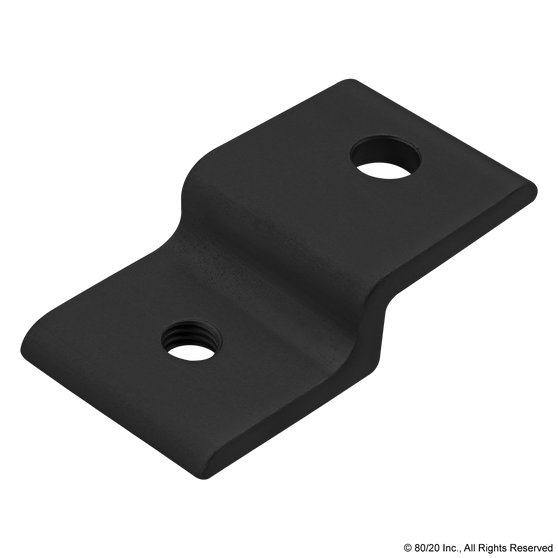

20-2496-Black | 20 Series Single Arm Narrow Panel Retainer

NOTE: Stock items typically ship within 24-48 Hrs; Non-Stock items take 2-4 weeks.

$8.93
(0) Write a Review
SKU:
20-2496-Black

Product Description

The single arm narrow panel retainer is used to mount a panel when it is recessed within the T-slot or on the profile frame. It is a strong fastening option that is simple to use, provides stability, and reduces vibration. The single arm narrow panel retainer is frequently used when mounting one panel to a profile or in instances when larger profile series are used to mount two panels. It requires a drill through machining service on the panel.



Series :20 Series
Material :Aluminum
Grade :6105-T5
Process :Milled
Finish :Anodize
Color :Black
A :39.00mm
B :M5 X 0.8
C :10.00mm
D :22.00mm
E :8.51mm
F :5.50mm
G :3.00mm
H :3.00mm
J :19.00mm
K :7.20mm
L :10.20mm
M :20.00mm
Weight :0.014000

Other Details

Shipping:
Stock items typically ship within 2 business days; Non-Stock items take 2-4 weeks.
Availability:
Most products on this Web Store are Stocked Items but, availability is not guaranteed. Stocked items will be confirmed at time of order via order confirmation.
Custom Cuts:
Custom cuts and Longer lengths are also available. For more information call us at 905-625-4805 or email your inquiry to sales@cpiautomation.com
