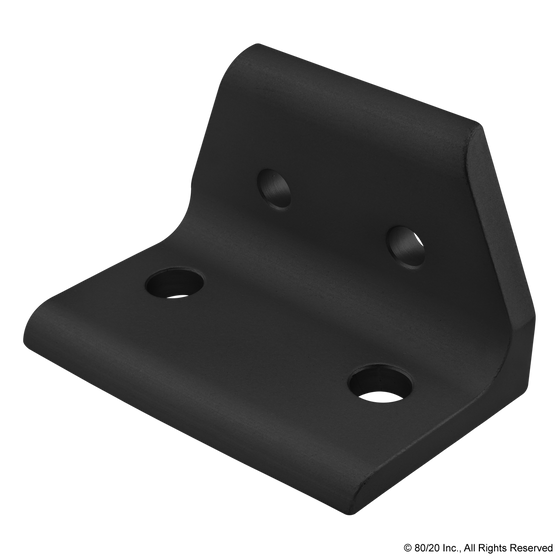

65-4512-Black | 25 to 40 Series 4 Hole - Wide Transition Inside Corner Bracket

NOTE: Stock items typically ship within 24-48 Hrs; Non-Stock items take 2-4 weeks.

$14.88
(0) Write a Review
SKU:
65-4512-Black

Product Description

The 4 hole - wide transition inside corner bracket creates a 90 degree connection between profiles within the same product type (either fractional or metric) but of differing series. It has two adjacent holes on each side and is an external fastening method that requires no machining services. The bracket is flush with the profiles, taking up less space in the overall design. This option can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability as well as being reconfigurable and reusable. The suggested mounting hardware can be found on the "Suggested Hardware" tab.



Series :25 Series to 40 Series
Material :Aluminum
Grade :6105-T5
Finish :Anodize
Color :Black
A :40.00mm
B :40.00mm
C :6.00mm
D :20.00mm
E :18.75mm
F :25.00mm
G :40.00mm
H :6.30mm
J :62.50mm
K :40.00mm
L :11.25mm
M :20.00mm
N :8.30mm
Weight :0.148000

Other Details

Shipping:
Stock items typically ship within 2 business days; Non-Stock items take 2-4 weeks.
Availability:
Most products on this Web Store are Stocked Items but, availability is not guaranteed. Stocked items will be confirmed at time of order via order confirmation.
Custom Cuts:
Custom cuts and Longer lengths are also available. For more information call us at 905-625-4805 or email your inquiry to sales@cpiautomation.com
