4281 | 15 Series 9 Hole - Wide Slotted Inside Corner Bracket

NOTE: Stock items typically ship within 24-48 Hrs; Non-Stock items take 2-4 weeks.

$16.63
(0) Write a Review
SKU:
4281

Product Description

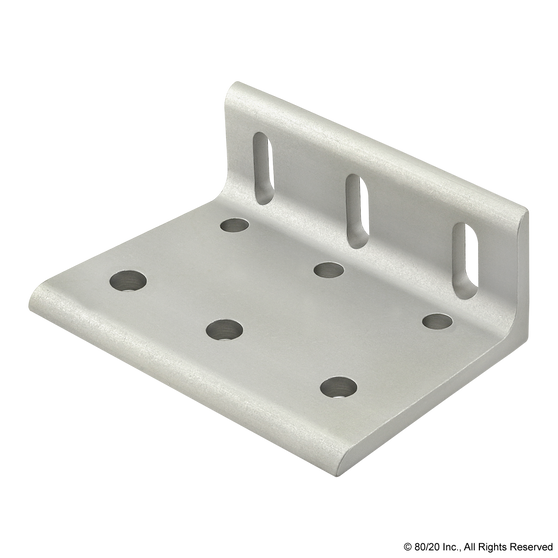

The 9 hole - wide slotted inside corner bracket is an external fastening method that creates a 90 degree connection. One side of the bracket has three adjacent holes and the second side has six holes comprised of two rows and three columns. The three adjacent holes are slotted, allowing for a larger degree in adjustability between connecting profiles. This bracket requires no machining services and can provide infinite positioning along the profile T-slot. It engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. The suggested mounting hardware can be found on the "Suggested Hardware" tab.



Series :15 Series
Material :Aluminum
Grade :6105-T5
Finish :Anodize
Color :Clear
A :2.250"
B :.750"
C :4.310"
D :.656"
E :1.500"
F :.328"
G :.500"
H :.500"
J :.656"
K :1.500"
L :.328"
M :.250"
N :3.000"
P :1.500"
Weight :0.406000

Other Details

Shipping:
Stock items typically ship within 2 business days; Non-Stock items take 2-4 weeks.
Availability:
Most products on this Web Store are Stocked Items but, availability is not guaranteed. Stocked items will be confirmed at time of order via order confirmation.
Custom Cuts:
Custom cuts and Longer lengths are also available. For more information call us at 905-625-4805 or email your inquiry to sales@cpiautomation.com
