40-6860 | 40 Series Single Short UniBearing™

NOTE: Stock items typically ship within 24-48 Hrs; Non-Stock items take 2-4 weeks.

$24.56
(0) Write a Review
SKU:
40-6860

Product Description

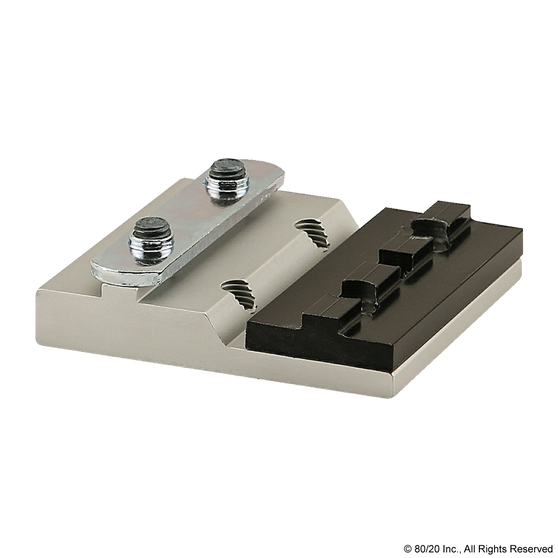

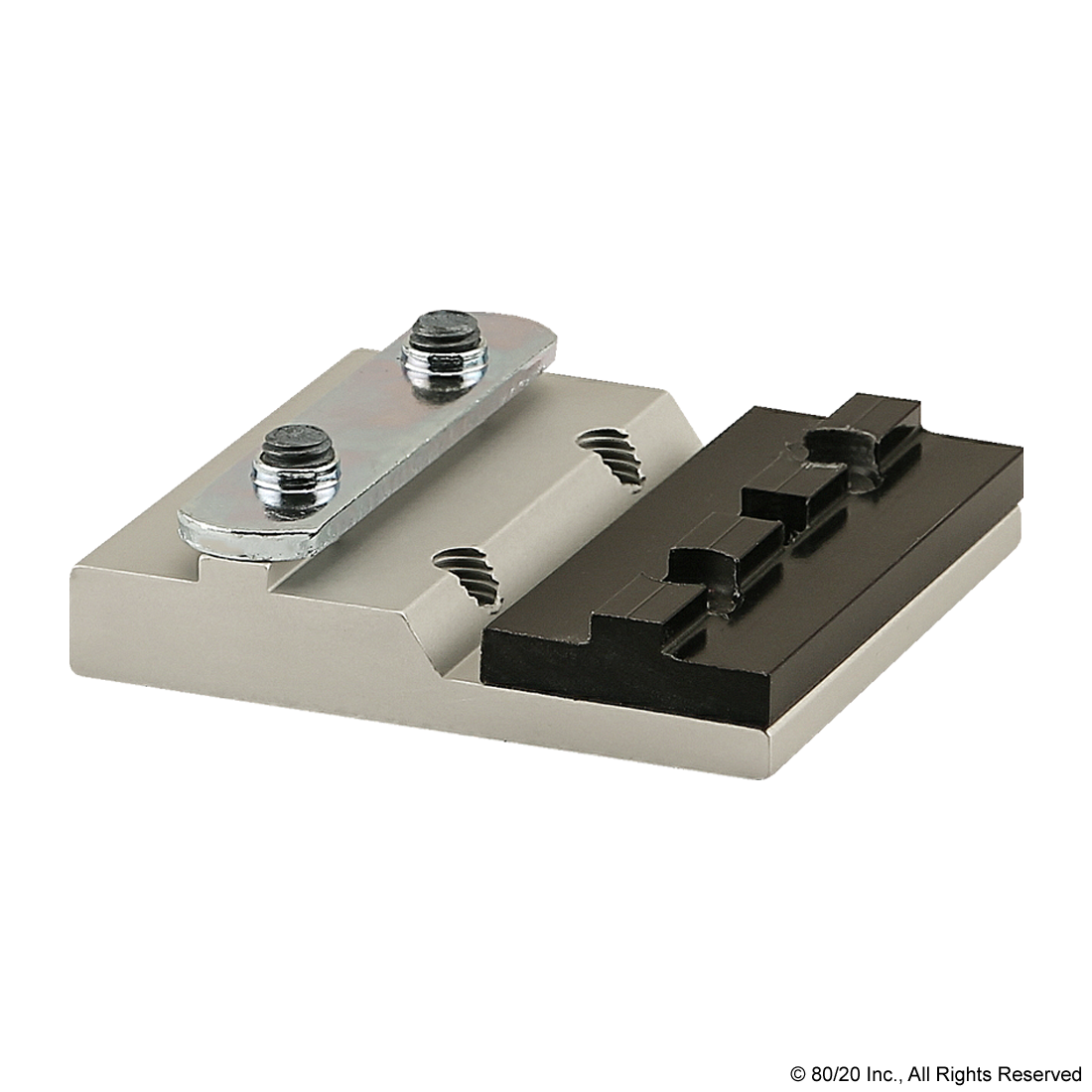

The single short UniBearing™ has an open design that enables customized layouts. It is an option that is commonly used in applications with one guiderail. The UniBearing™ is easy to quickly install or remove without taking it apart, allowing reduced retooling and downtime and increased productivity and flexibility. The pads are mounted using stainless steel flathead socket cap screws that secure it to the housing and eliminate the need for high-cycle pads. The bearing can move or be fixed; when fixed, it allows the guardrail and assembly to move. All UniBearings™ come with pre-drilled brake holes and tapped mounting holes that enable attachment of accessories to a flat surface.



Series :40 Series
Material :Aluminum
Grade :6105-T5
Process :Extruded
Finish :Anodize
Color :Clear
A :82.45mm
B :7.85mm
C :3.05mm
D :12.83mm
E :6.22mm
F :12.32mm
G :15.78mm
H :42.45mm
J :62.39mm
K :17.50mm
L :20.00mm
M :40.00mm
N :75.00mm
P :M8 SHCS
Q :M8 x 1.25
R :10-24
S :8.33mm
Weight :0.476000

Other Details

Shipping:
Stock items typically ship within 2 business days; Non-Stock items take 2-4 weeks.
Availability:
Most products on this Web Store are Stocked Items but, availability is not guaranteed. Stocked items will be confirmed at time of order via order confirmation.
Custom Cuts:
Custom cuts and Longer lengths are also available. For more information call us at 905-625-4805 or email your inquiry to sales@cpiautomation.com
