Product Description
The 4 hole - concealed hinge allows you to design doors with hidden hinges when the door is closed. The hinge mounts to the inside of the frame, which makes enclosures more secure; they are not able to be dismantled when the door is shut.
Suggested Hardware
| Mount to T-Slot | ||||
 |

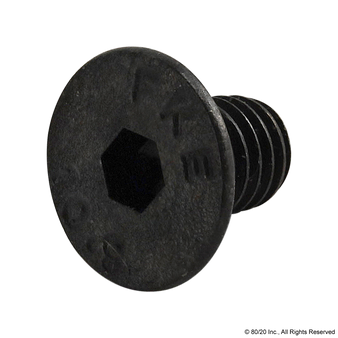

11-5708 | 4 | M5 x 8.00mm Flat Head Socket Cap Screw (FHSCS) | Add to Cart |
 |

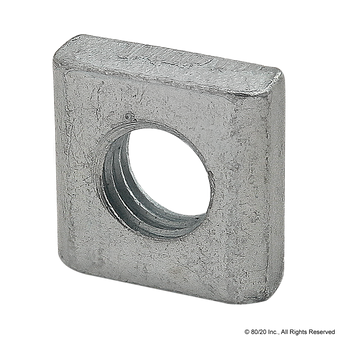

14122 | 4 | M5 Slide-in Economy T-Nut Block | Add to Cart |
| Series : | 20 Series |
| Material : | Aluminum |
| Grade : | 6060 |
| Finish : | Anodize |
| Color : | Clear |
| Process : | Extruded |
| A : | 3.976" |
| B : | 1.969" |
| C : | 1.181" |
| D : | .209" |
| E : | .571" |
| F : | .866" |
| G : | 1.732" |
| H : | .394" |
| J : | .157" |
| Weight : | 0.033000 |
