Product Description
NOTE: THE PRODUCT IS NEW AND NOT YET AVAILABLE IN OUR WAREHOUSE, THE LEAD TIME OF THIS PRODUCT IS 2-3 WEEKS.

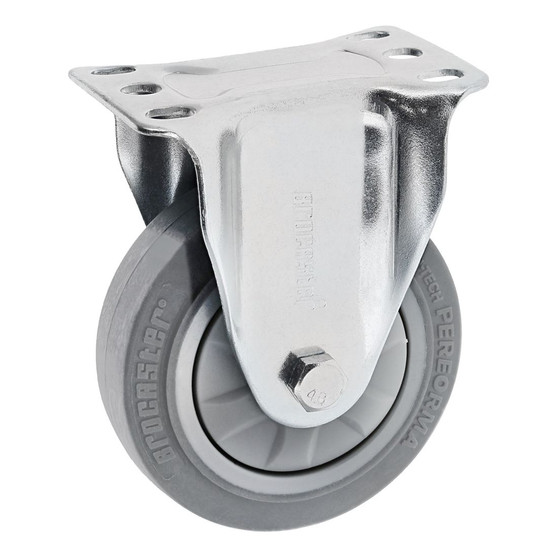

The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
Suggested Hardware
| Mount to Base Plate | ||||
 |
3110 | 4 | 5/16-18 x .625" Socket Head Cap Screw (SHCS) | Add to Cart |
 |
13-8520 | 4 | M8 x 20.00mm Socket Head Cap Screw (SHCS) | Add to Cart |
| Mount to RT Profile | ||||
 |
3753 | 2 | 5/16-18 x 2.000" Flanged Hex Head Bolt (FHHB) | Add to Cart |
 |
3759 | 2 | 5/16-18 Flanged Hex Head Nut with Thread Lock Patch | Add to Cart |
| Series : | Fractional, Metric, Ready Tube |
| Material : | Steel / Rubber |
| Finish : | Zinc |
| Color : | Gray |
| A : | 3.740" (95.00mm) |
| B : | 2.913" (74.00mm) |
| C : | 2.875" (73.03mm) |
| D : | 2.637" (67.00mm) |
| E : | 1.732" (44.00mm) |
| F : | 0.354" (9.00mm) |
| G : | 5.078" (129.00mm) |
| H : | 3.937" (100.00mm) |
| Load Height : | 5.078" (129.00mm) |
| Load Capacity : | 250 lbs (113.39 kg) |
| Weight : | 1.080000 |
