Product Description
NOTE: THE PRODUCT IS NEW AND NOT YET AVAILABLE IN OUR WAREHOUSE, THE LEAD TIME OF THIS PRODUCT IS 2-3 WEEKS.
- Fully extendable length, travel 24.212" (615mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
Suggested Hardware
| Mount to T-Slot | ||||
 |
3005 | 16 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) | Add to Cart |
 |
3275 | 16 | 8-32 Slide-in Economy T-Nut - Centered Thread | Add to Cart |
 |
3006 | 16 | .188" ID Washer | Add to Cart |
 |
11-4310 | 16 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) | Add to Cart |
 |
13022 | 16 | M4 Self-Aligning Slide-in T-Nut | Add to Cart |
 |
11-6039 | 16 | 4.39mm ID Washer | Add to Cart |
 |
13046 | 16 | M4 Self-Aligning Slide-in T-Nut | Add to Cart |
| Weight : | 4.036000 |
| Series : | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material : | Galvanized Steel |
| Load Capacity : | 100 lbs per pair |

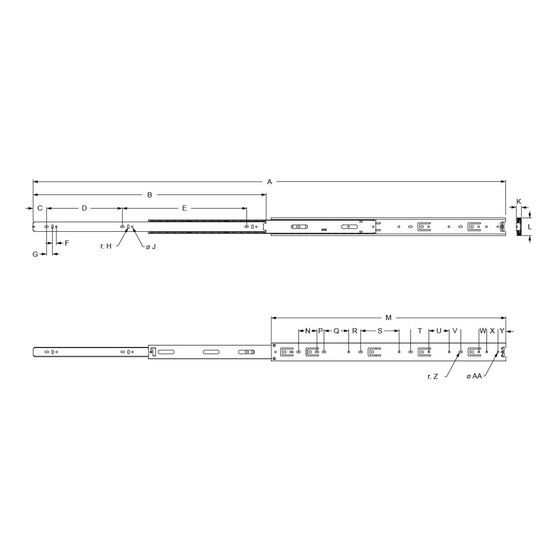

| A : | 47.613" (1209.39mm) |
| B : | 23.498" (596.87mm) |
| C : | 1.377" (35.00mm) |
| D : | 7.637" (194.00mm) |
| E : | 12.519" (318.00mm) |
| F : | 0.393" (10.00mm) |
| G : | 0.590" (15.00mm) |
| H : | 0.085" (2.18mm) |
| J : | 0.172" (4.37mm) |
| K : | 0.500" (12.70mm) |
| L : | 1.793" (45.55mm) |
| M : | 23.622" (600.00mm) |
| N : | 1.850" (47.00mm) |
| P : | 0.708" (18.00mm) |
| Q : | 2.500" (63.50mm) |
| R : | 1.200" (30.50mm) |
| S : | 3.877" (98.50mm) |
| T : | 1.830" (46.50mm) |
| U : | 2.047" (52.00mm) |
| V : | 1.161" (29.50mm) |
| W : | 0.187" (4.75mm) |
| X : | 0.187" (4.75mm) |
| Y : | 0.187 (4.75mm) |
| Z : | 0.090" (2.29mm) |
| AA : | 0.179" (4.57mm) |
