Product Description

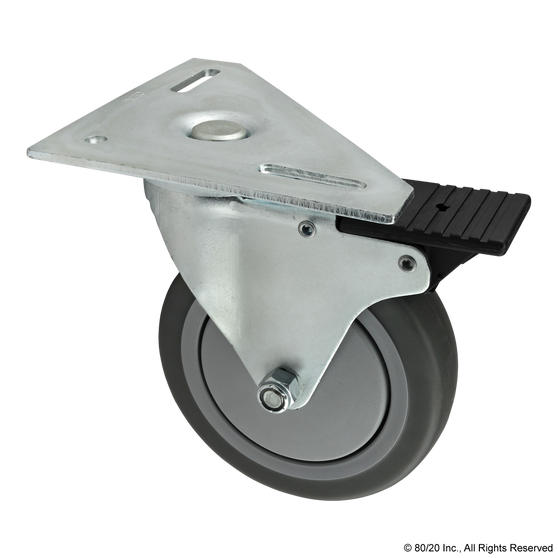

The triangular top plate caster is a foot that adds mobility to an application and can mount directly to a T-slot profile without a base plate. The slotted holes allow for easy positioning along the profile. The swivel enables easy movement and pivot turns, while the locking tab stops the wheel and the swivel rotation when depressed. The triangular shape provides additional clearance, making it ideal for use in tight spaces.
| Series : | 30 Series, 40 Series, 45 Series |
| Material : | Steel / Soft Rubber |
| Finish : | Zinc |
| Color : | Gray |
| A : | 139.70mm |
| B : | 101.60mm |
| C : | 69.85mm |
| D : | 7.95mm |
| E : | 19.46mm |
| F : | 7.95mm |
| G : | 19.05mm |
| H : | 127.00mm |
| J : | 158.75mm |
| K : | 117.48mm |
| Load Height : | 158.75mm |
| Load Capacity : | 136.36 kg |
| Weight : | 2.701000 |
