Product Description

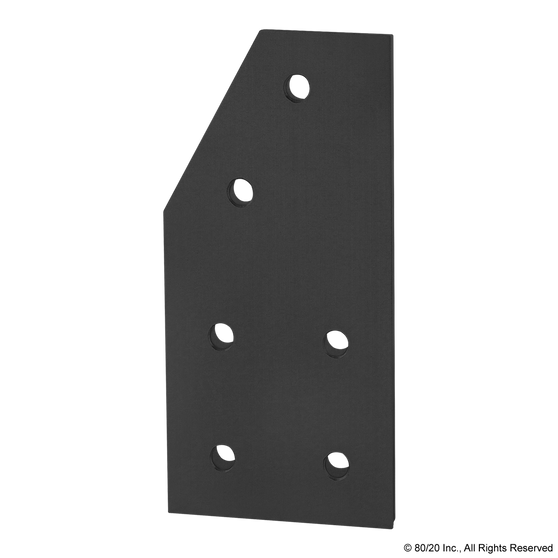

The 6 hole - 60 degree angled flat plate is an external fastening method that requires no machining services. This flat plate creates a 60 degree angle between profiles and its shape reinforces the strength of the connection. It is a durable option that is easy to assemble and can be reconfigured and reused. Tip: Use a double slide-in economy T-nut to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
Suggested Hardware
| Mount to T-Slot | ||||
 |
3330 | 6 | 5/16-18 x .687" Flanged Button Head Socket Cap Screw (FBHSCS) | Add to Cart |
 |
3278 | 6 | 5/16-18 Slide-in Economy T-Nut - Offset Thread | Add to Cart |
| Series : | 15 Series |
| Material : | Aluminum |
| Grade : | 6105-T5 |
| Finish : | Anodize |
| Color : | Black |
| A : | 6.000" |
| B : | 3.000" |
| C : | 1.500" |
| D : | .750" |
| E : | .328" |
| F : | .250" |
| G : | 3.750" |
| H : | 1.701" |
| J : | 1.558" |
| K : | 60° |
| Weight : | 0.384000 |
