Product Description

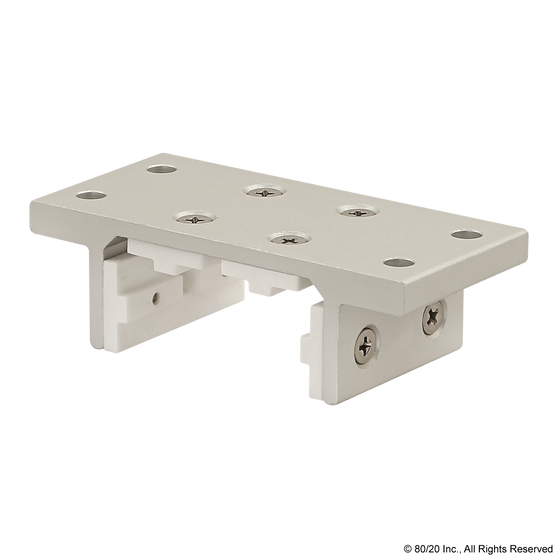

The 4-slot mount – double flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
| Series : | 10 Series |
| Material : | Aluminum |
| Grade : | 6105-T5 |
| Process : | Extruded |
| Finish : | Anodize |
| Color : | Clear |
| A : | 1.218" |
| B : | .312" |
| C : | .906" |
| D : | .094" |
| E : | 2.630" |
| F : | .156" |
| G : | 2.318" |
| H : | .306" |
| J : | .654" |
| K : | .156" |
| L : | 3.938" |
| M : | 1.875" |
| N : | n/a |
| P : | .438" |
| Q : | 1.469" |
| R : | .344" |
| S : | 1.000" |
| T : | #8 FHS |
| U : | n/a |
| V : | .257" |
| W : | 3.250" |
| X : | 1.000" |
| Y : | 1.000" |
| Z : | .438" |
| AA : | .406" |
| Weight : | 0.247000 |
